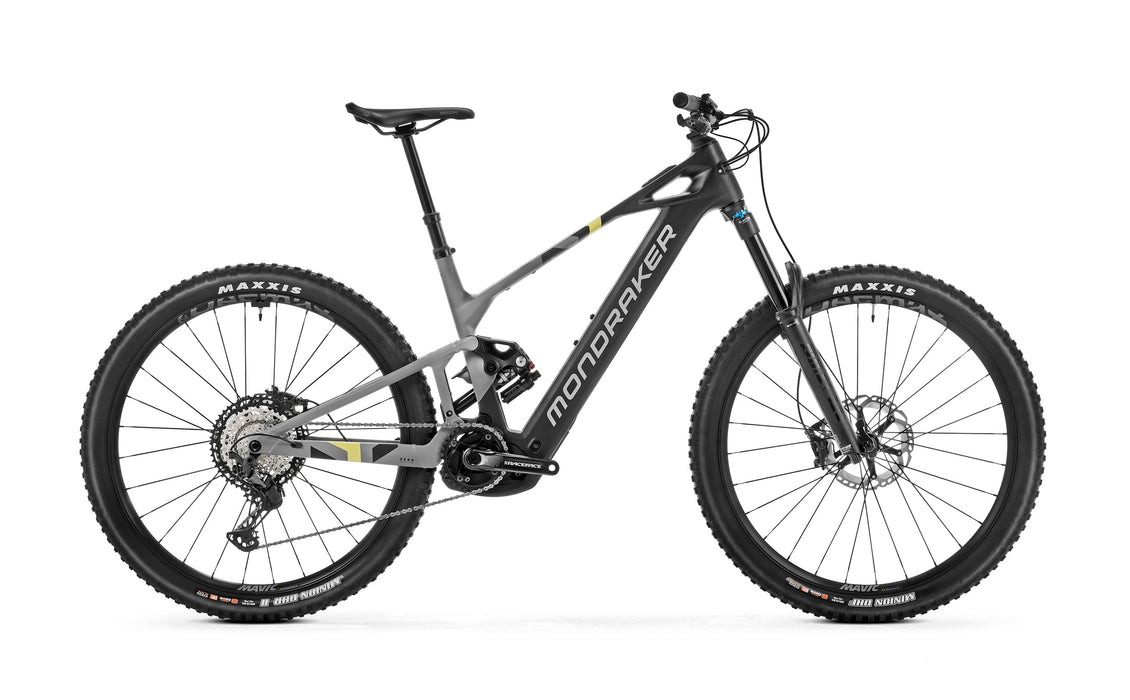

CRAFTY CARBON R: ACCESS THE LATEST IN EVOLUTION
Crafty Carbon R is your ticket to ride Mondraker’s best range of ebikes ever. The Bosch CX motor, the heart of the machine, is combined with Bosch’s fully removable 800Wh battery (accessible via a cover on the underside of the downtube). This is the only build with a Shimano XT M8100 groupset, including XT four piston brakes, XT 12 speed rear mech and 10-51 cassette. Available in two colourways: Bunker Grey / Fog Grey / Flame Red, and Black / Nimbus Grey / Tonic Gold.
Specifications:
|
Frame
|
Crafty Stealth Air full Carbon front triangle, Stealth Alloy rear triangle, Updated Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers. |
|
Sizes
|
S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm |
|
Rear shock
|
Fox Float-X LV Performance, 185x55mm. Settings: compression 2 positions lever, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings |
|
Shock settings
|
CS40 compression, RL60 rebound, Rezi B40, LML, 0.2 volume spacer |
|
Fork
|
Fox 38 29 Float GRIP Performance, 160mm, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload |
|
Headset
|
Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs without blocklock |
|
Stem
|
Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore |
|
Handlebar
|
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise. |
|
Grips
|
Onoff Forest, CNC lock-on, 135mm |
|
Seatpost
|
Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm) |
|
Saddle
|
Ergon SM-10 |
|
Front brake
|
Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin |
|
Rear brake
|
Shimano XT M8120, 4 piston caliper, MT800 ICE-Tech 203mm CenterLock rotor, resin pads with fin |
|
Brake lever
|
Shimano XT M8100, ergonomic antiskid lever with servo wave, tool less reach adjust, free stroke adjust |
|
Rims
|
Mavic E-Deemax 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes |
|
Spokes
|
Mavic J-bend double butted, contactless lacing |
|
Front hub
|
Mavic, Boost 15x110mm, IS 6 bolts |
|
Rear hub
|
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, MS freehub |
|
Front tire
|
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
|
Rear tire
|
Maxxis Minion DHR II 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead |
|
Crankset
|
Race Face Aeffect-R ebike, 160mm |
|
Rings
|
Race Face, 34T, steel, direct mount |
|
Chain
|
Shimano XT M8100, 12s |
|
Rear derrailleur
|
Shimano XT M8100, SGS, Shadow+ |
|
Shift levers
|
Shimano XT M8100, Rapid Fire Plus, 12s |
|
Casette
|
Shimano XT M8100 10-51T Hyperglide+, 12s |
|
Derailleur hanger
|
Sram UDH |
|
Weight
|
52,7 lbs |
|
Display
|
Purion 400 / Bosch Mini Remote / Bosch System Controller |
|
Motor
|
New Bosch Performance Line CX (20 Mph) SMART SYSTEM (BDU384Y) |
|
Battery
|
Bosch Powertube 800Wh |
